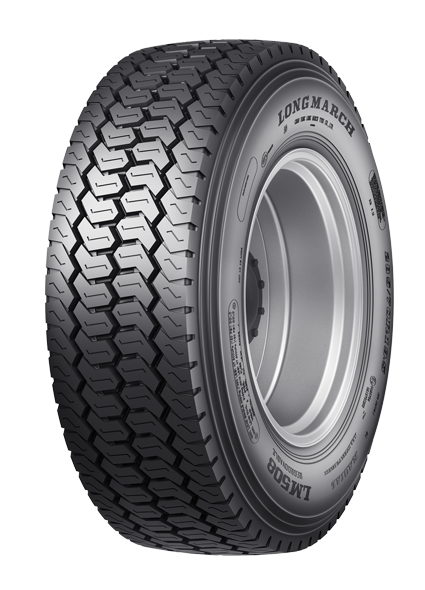

LM/R/SC 508
Excellent comprehensive performance
●Comprehensive performance formula design，can provide good wear resistance performance, low heat generation performance and anti-slip performance
●Highway pattern, suitable for highway, general road, urban and rural highway
Wheel Positions
Recommended
Allowed
Product Technical Parameters
| Tire specification | Ply | Load Index | Load(kg | Air Pressure(kpa) | Speed Level | Measured rims | Allowable rims | New tire tread depth(mm) | Driving surface width（mm） | New tire designed size(mm | |||
| Single Tire | Double Tire | Single Tire | Double Tire | 断面宽度 | Outer diameter | ||||||||
| 215/75R17.5 | 16 | 135/133 | 2180 | 2060 | 860 | 860 | J | 6 | 6.75 | 15 | 158 | 212 | 767 |
| 225/70R19.5 | 12 | 125/123 | 1650 | 1550 | 660 | 660 | J | 6.75 | 6 | 15 | 176 | 226 | 811 |
| 235/75R17.5 | 18 | 143/141 | 2725 | 2575 | 860 | 860 | J | 6.75 | 5.25,6.75 | 15 | 176 | 233 | 797 |
| 245/70R19.5 | 16 | 135/133 | 2180 | 2060 | 830 | 830 | J | 7.5 | 6.75 | 15 | 196 | 248 | 839 |
| 265/70R19.5 | 16 | 143/141 | 2725 | 2527 | 860 | 860 | J | 7.5 | 8.25 | 15 | 195 | 262 | 867 |
| 285/70R19.5 | 18 | 150/148 | 3550 | 3150 | 900 | 900 | J | 8.25 | - | 15 | 220 | 283 | 895 |
