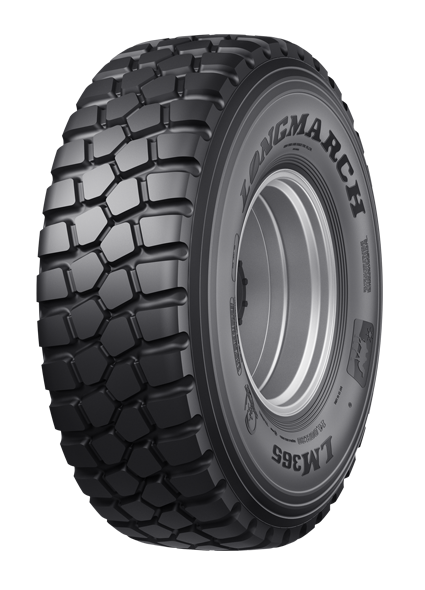

LM/R/SC 365
High-strength skeleton material for excellent load-bearing capacity
●Strong and reliable horizontal pattern blocks, provides powerful driving capability on unpaved roads
●High tenacity steel cord and special airtight layer glue ensuring the tire's ability to run under low air pressure
●The unique tread rubber formula allows the tire to drive under high temperature conditions and provides high wear resistance at the same time
●High-strength skeleton material enhances the tire's load-bearing capacity
Wheel Positions
Recommended
Allowed
Product Technical Parameters
| Tire specification | Ply | Load Index速度级别 | Load(kg) | Air Pressure(kpa) | 速度级别代号 | 测量轮辋 | 允许使用轮辋 | 新胎花深(mm) | Driving surface width（mm） | New tire designed size(mm) | |||
| Single Tire | Double Tire | Single Tire | Double Tire | Section width | Outer diameter | ||||||||
| 14.00R20 | 20 | 164/161 | 5000 | 4625 | 790 | 790 | G | 10.0 | - | 20 | 310 | 375 | 1240 |
| 16.00R20 | 22 | 174/171 | 6700 | 6150 | 760 | 760 | G | 11.25 | - | 20.8 | 345 | 438 | 1309 |
Strong driving force and reliability
The 14.00R20 OTR Tyre adopts a sturdy and reliable transverse pattern block design, which not only improves the driving ability of the tire on unpaved roads, but also enhances its durability. Whether on construction sites, mines or other complex terrains, this tire can ensure that the equipment has strong traction and stability.
High-toughness structure ensures safe operation
This tire has built-in high-strength steel cord and special airtight layer rubber to ensure that the tire can run normally under low air pressure conditions. This design greatly improves the safety and adaptability of the tire, allowing the equipment to operate stably even under extreme conditions and reduce downtime.
Unique formula to cope with high temperature and high wear challenges
With a unique tread rubber formula, the 14.00R20 OTR Tyre can withstand use under high temperature conditions while providing extremely high wear resistance. This means that the tire is not easy to wear during long-term heavy-load use, extending its service life and reducing maintenance costs.
High-strength frame material for enhanced load capacity
By using high-strength frame material, the 14.00R20 OTR Tire significantly improves its load-bearing capacity and can easily cope with the high load requirements of heavy machinery and equipment. This design not only ensures the stability of the equipment during operation, but also further enhances overall safety.
