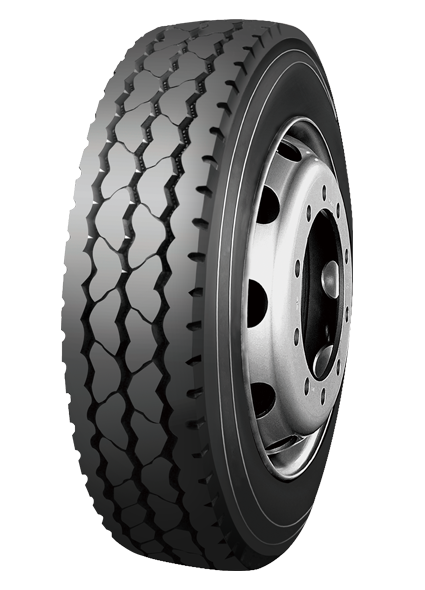

LM/R/SC 520
Special tread formula design for good heat dissipation performance
●Unique pattern design can double the tread cleanliness, no stones are caught during driving
●Special tream formula design, offers good heat dissipation performance, provides tire better wear resistance, and longer liftime
●Highway pattern, suitable for highway, general road and urban highway
Wheel Positions
Recommended
Allowed
Product Technical Parameters
| Tire specification | Ply | Load Index | Load(kg | Air Pressure(kpa) | Speed Level | Measured rims | Allowable rims | New tire tread depth(mm) | Driving surface width（mm） | New tire designed size(mm | |||
| Single Tire | Double Tire | Single Tire | Double Tire | Section width | Outer diameter | ||||||||
| 8R22.5 | 12 | 128/126 | 1800 | 1700 | 760 | 760 | L | 6.00 | 5.25,6.75 | 14.5 | 162 | 203 | 935 |
| 9R22.5 | 14 | 136/134 | 2240 | 2120 | 830 | 830 | L | 6.75 | 6.00、7.50 | 15 | 170 | 229 | 974 |
| 10R22.5 | 16 | 144/142 | 2800 | 2650 | 900 | 900 | L | 6.75 | 7.5 | 15 | 190 | 254 | 1019 |
| 12R22.5 | 18 | 152/149 | 3550 | 3250 | 930 | 930 | L | 9.00 | 8.25 | 15.5 | 235 | 300 | 1085 |
| 11.00R20 | 18 | 152/149 | 3550 | 3250 | 930 | 930 | L | 8.00 | 8.5,8.00V | 16 | 220 | 293 | 1085 |
| 11.00R20 | 16 | 150/147 | 3350 | 3075 | 830 | 830 | L | 8.00 | 8.5,8.00V | 16 | 220 | 293 | 1085 |
