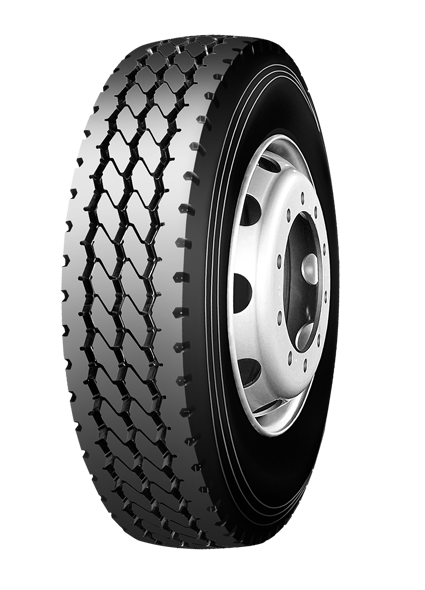

LM/R/SC 519
Unique bead structure design
●Comprehensive performance formula design, can provide excellent wear resistance, tear resistance and low heat generation performance
●Unique bead structure design can provide good bead durability
●Highway pattern, suitable for highway, general road, urban and rural highway
Wheel Positions
Recommended
Allowed
Product Technical Parameters
| Tire specification | Ply | Load Index | Load(kg | Air Pressure(kpa) | Speed Level | Measured rims | Allowable rims | New tire tread depth(mm) | Driving surface width(mm） | New tire designed size(mm | |||
| Single Tire | Double Tire | Single Tire | Double Tire | Section width | Outer diameter | ||||||||
| 6.50R16LT(TL-TB) | 12 | 110/105 | 1060 | 925 | 670 | 670 | K | 5.50F | 11 | 140 | 185 | 750 | |
| 7.00R16LT(TL-TB) | 14 | 118/114 | 1320 | 1180 | 770 | 770 | K | 5.50F | 6.00G | 12.5 | 152 | 200 | 775 |
| 7.50R16LT | 14 | 122/118 | 1500 | 1320 | 770 | 770 | L | 6.00G | 5.50F,6.50H | 14 | 162 | 215 | 805 |
| 7.50R20 | 14 | 130/128 | 1900 | 1800 | 830 | 830 | L | 6 | 6.5,6.50T | 14 | 162 | 215 | 935 |
| 8.25R16LT | 16 | 128/124 | 1800 | 1600 | 770 | 770 | L | 6.50H | 6.00G,6.5 | 14 | 176 | 235 | 855 |
| 11R22.5 | 16 | 148/145 | 3150 | 2900 | 850 | 850 | L | 8.25 | 7.5 | 15.5 | 215 | 279 | 1054 |
| 11R24.5 | 16 | 149/146 | 3250 | 3000 | 830 | 830 | L | 8.25 | 7.5 | 18 | 215 | 279 | 1104 |
| 12R22.5 | 18 | 152/149 | 3550 | 3250 | 930 | 930 | L | 9 | 8.25 | 18 | 230 | 300 | 1085 |
| 13R22.5 | 18 | 154/151 | 3750 | 3450 | 830 | 830 | L | 9.75 | 9 | 18 | 248 | 320 | 1124 |
| 295/80R22.5 | 18 | 152/149 | 3550 | 3250 | 900 | 900 | L | 9 | 8.25 | 16 | 246 | 298 | 1044 |
| 315/80R22.5 | 18 | 154/151 | 3750 | 3450 | 830 | 830 | L | 9 | 9.75 | 18 | 230 | 312 | 1076 |
| 315/80R22.5 | 20 | 156/150 | 4000 | 3350 | 860 | 860 | L | 9 | 9.75 | 18 | 230 | 312 | 1076 |
