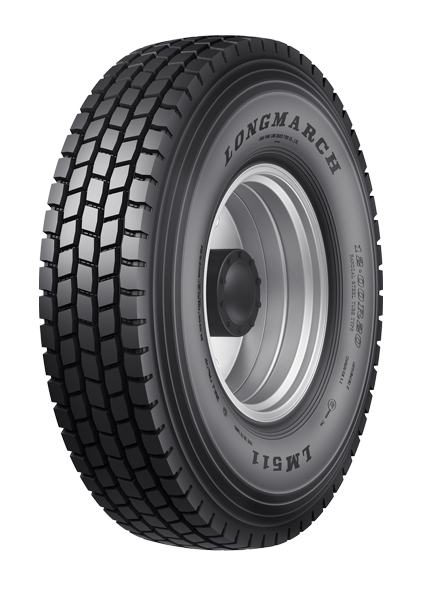

LM/R/SC 511
Excellent comprehensive performance
●Comprehensive performance formula design, can provide excellent wear resistance, tear resistance and low heat generation performance
●Highway pattern, suitable for highway, general road, urban and rural highway
Wheel Positions
Recommended
Allowed
Product Technical Parameters
| Tire specification | Ply | Load Index | Load(kg | Air Pressure(kpa) | Speed Level | Measured rims | Allowable rims | New tire tread depth(mm) | Driving surface width（mm） | New tire designed size(mm | |||
| Single Tire | Double Tire | Single Tire | Double Tire | Section width | Outer diameter | ||||||||
| 10.00R20 | 18 | 149/146 | 3250 | 3000 | 930 | 930 | K | 7.5 | 8.0,7.50V | 18 | 215 | 278 | 1054 |
| 11.00R20 | 18 | 152/149 | 3550 | 3250 | 930 | 930 | K | 8 | 8.5,8.00V | 20 | 223 | 293 | 1085 |
| 12.00R20 | 18 | 154/151 | 3750 | 3450 | 830 | 830 | K | 8.5 | 9.0,8.50V | 20 | 238 | 315 | 1125 |
| 7.00R16LT(TL-TB) | 14 | 118/114 | 1320 | 1180 | 770 | 770 | J | 5.50F | 6.00G | 13.5 | 152 | 214 | 800 |
| 295/80R22.5（w) | 18 | 152/149 | 3550 | 3250 | 900 | 900 | K | 9 | 8.25 | 22 | 246 | 298 | 1044 |
| 315/80R22.5（W） | 20 | 156/150 | 4000 | 3350 | 850 | 850 | K | 9 | 9.75 | 22 | 255 | 312 | 1076 |
Suitable for low-speed driving in mines, rugged roads, etc.
Deep block design, with good wear resistance, cut resistance and tear resistance;
New tire bead structure design, excellent load-bearing capacity.
Excessive or low tire pressure may cause premature tire damage. Follow the tire manual or vehicle bulletin.
Only specially trained personnel can assemble tires, otherwise it may cause tire/rim assembly to be improper and burst.
